Restoring my AC-4

Original AC-4

Electrolytic condensers and AC-4 transformer before restoration
Upper part

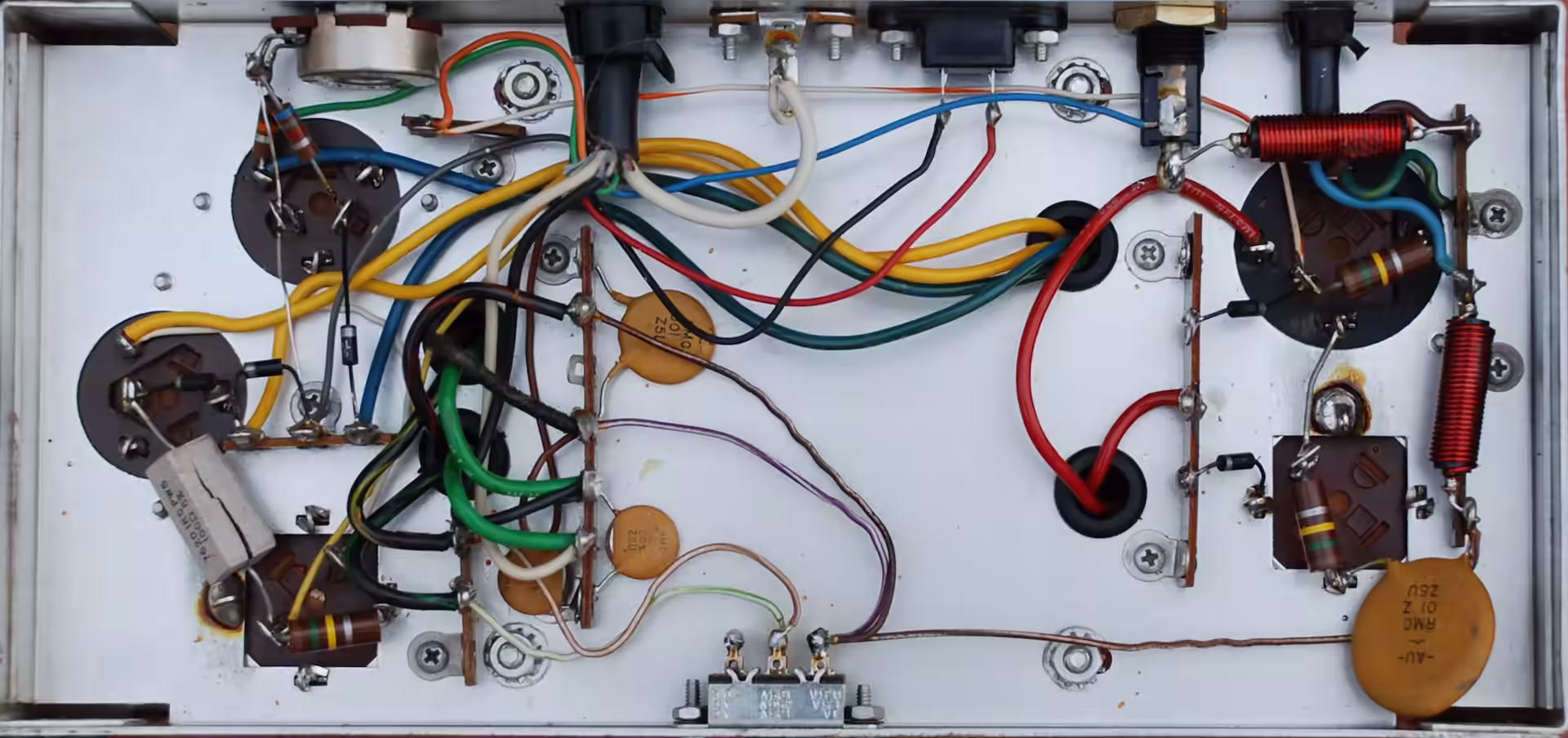

Internal wiring of the AC-4 before restoration
Bottom part

Restoration beginning

New AC-4 electrolytic condensers
Upper part
Preparation for the new wiring of the AC-4
Bottom part

Restoring AC-4

Starting the new wiring connections
Bottom part
Preparing the connection of the transformer
Bottom part
Starting to connect the transformer bottom view
Bottom part
Starting to connect the new wiring
Bottom part
Starting to connect the transformer top view
Upper part

AC-4 restored

Wiring completed
Bottom part
AC-4 finished top view
Upper part
Lid placed on AC-4 finished
AC-4 fully assembled

Scheme of the AC-4

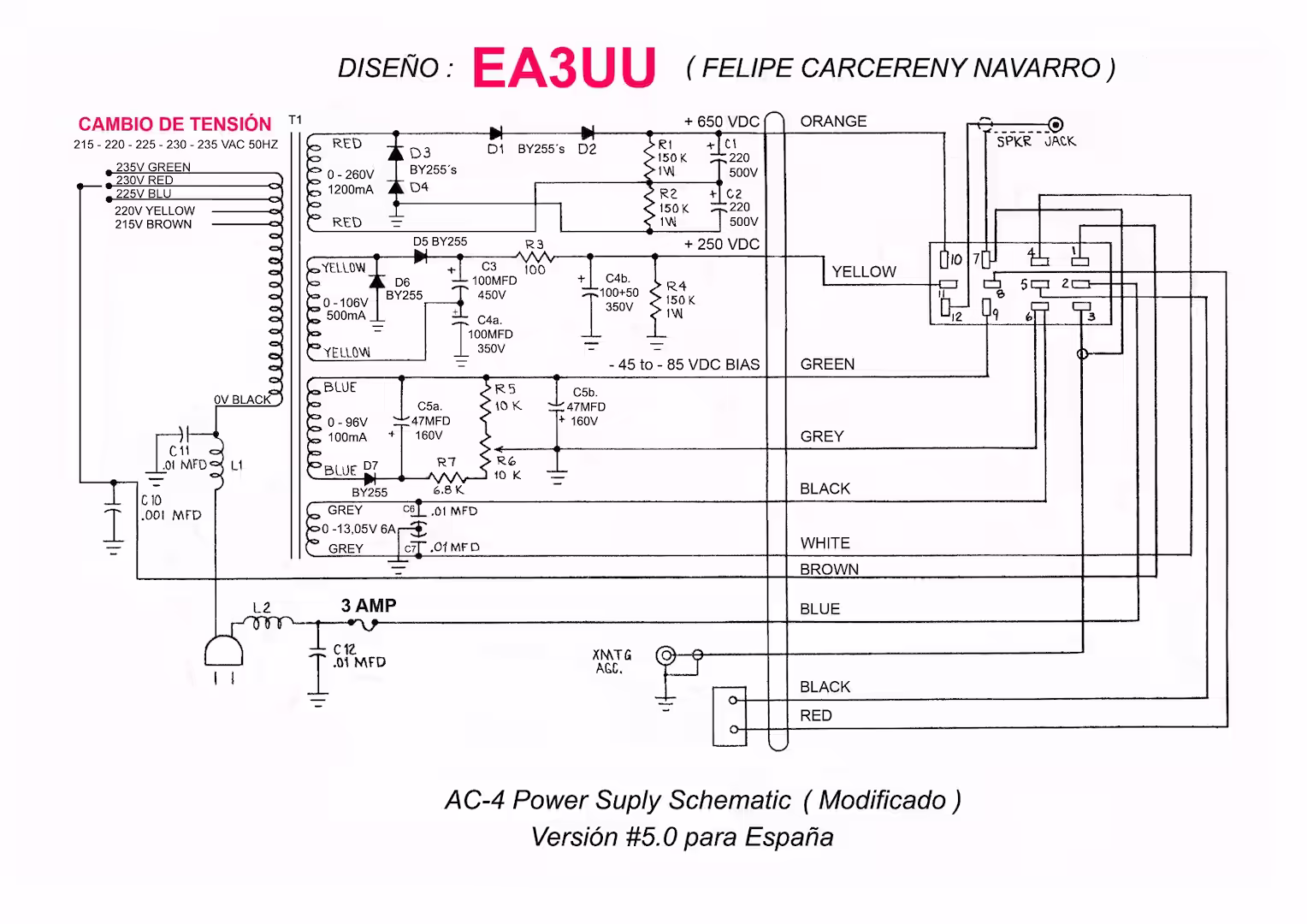

So that you can see the new values of the DRAKE AC-4 components, I have attached an electrical diagram of the complete restoration of my AC-4 version 5.0 for Spain.

In the primary winding I have put 5 voltage inputs: 215, 220, 225, 230, 235 VAC in order to choose the voltage that you have in the radio room.

Also in the electrical diagram you have the different new values of the different components to get the best performance and maximum reliability from the DRAKE T-4XC transmitter.

The direct current voltages (VDC) are taken with the transmitter running and transmitting from 160 to 180 W on the RF output (this source can also be used with the T-4X, T-4XA and T-4XB models).

Diagram of the restoration to the new version 5.0 for Spain of the AC-4
Restoration scheme
